Abstract
Neurofibrillary tangles composed of exon 10+ microtubule associated protein tau (MAPT) deposits are the characteristic feature of the neurodegenerative diseases progressive supranuclear palsy (PSP) and corticobasal degeneration (CBD). PSP, CBD and more recently Alzheimer's disease and Parkinson's disease, are associated with the MAPT H1 haplotype, but the relationship between genotype and disease remains unclear. Here, we investigate the hypothesis that H1 expresses more exon 10+ MAPT mRNA compared to the other haplotype, H2, leading to a greater susceptibility to neurodegeneration in H1 carriers. We performed allele-specific gene expression on two H1/H2 heterozygous human neuronal cell lines, and 14 H1/H2 heterozygous control individual post-mortem brain tissue from two brain regions. In both tissue culture and post-mortem brain tissue, we show that the MAPT H1 haplotype expresses significantly more exon 10+ MAPT mRNA than H2. In post-mortem brain tissue, we show that the total level of MAPT expression from H1 and H2 is not significantly different, but that the H1 chromosome expresses up to 1.43-fold more exon 10+ MAPT mRNA than H2 in the globus pallidus, a brain region highly affected by tauopathy (maximum exon 10+ MAPT H1:H2 transcript ratio=1.425, SD=0.205, P<0.0001), and up to 1.29-fold more exon 10+ MAPT mRNA than H2 in the frontal cortex (maximum exon 10+ MAPT H1:H2 transcript ratio=1.291, SD=0.315, P=0.006). These data may explain the increased susceptibility of H1 carriers to neurodegeneration and suggest a potential mechanism between MAPT genetic variability and the pathogenesis of neurodegenerative disease.
INTRODUCTION
The human microtubule associated protein tau (MAPT or tau) locus lies on chromosome 17q21 and the protein is important in establishing and maintaining neuronal morphology. Six tau isoforms are expressed in the adult human central nervous system, produced by alternative splicing of exons 2, 3 and 10. Alternative splicing of exon 10 leads to a protein containing either three (3R; exon 10−) or four (4R; exon 10+) tandem repeats of a microtubule-binding motif (1). Accumulation of hyperphosphorylated intracellular tau aggregates known as neurofibrillary tangles (NFTs) is seen in Alzheimer's disease (AD), progressive supranuclear palsy (PSP), corticobasal degeneration (CBD), frontotemporal dementia (FTD) and Pick's Disease (PiD), neurodegenerative disorders collectively referred to as tauopathies (2). In PSP and CBD, the NFTs contain an excess of 4R tau protein, hence these diseases are known as 4R-tauopathies, although there is no significant increase in soluble 4R tau protein. It has also been shown that in PSP and CBD patients, there is an increase in exon 10+ (4R) MAPT mRNA transcripts in regions of the brain most severely affected by neurodegeneration (3,4). In AD, the NFTs are composed of equal amounts of 4R and 3R tau, and in PiD the tau is mainly of the 3R form. Alterations in the ratio of wild-type 4R to 3R MAPT transcripts have been found in families with inherited FTD and parkinsonism linked to chromosome 17 (FTDP-17) (5,6) in which splice-site mutations clustered in the intronic sequences immediately following exon 10 generate transcripts constitutively including exon 10 from the mutant allele (5–7). More recently, a shift in 4R:3R ratios in favour of 4R MAPT mRNA transcripts has been found in mild cognitive impairment and AD (8,9), suggesting that disruption in 4R:3R ratios may underlie a broad range of neurodegeneration disease.
Two haplotypes exist at the MAPT locus, H1 and H2, of which H1 is significantly over-represented most notably in PSP and CBD (10–12). More recently, H1 variants have been found associated with AD (13) and Parkinson's disease (PD) (14). Linkage disequilibrium (LD) across the region is very high and the two haplotype blocks are correspondingly large, most recently estimated as between 1 and 2 Mb in size (15,16). The cause of the high LD has been recently shown to be the presence of a 900 kb chromosomal inversion containing the MAPT locus, in which the H2 MAPT locus is inverted relative to H1 (17). Interestingly, the inversion on the H2 chromosome has been shown to be under positive selection in Europeans (17).
It is clear, therefore, that haplotype-specific sequence variation exists at critical points across the MAPT locus. We are interested in the hypothesis that polymorphisms within the MAPT H1 haplotype sequence are responsible for subtle, higher levels of exon 10+ (4R) MAPT transcript expression from H1 chromosomes, leading, over time, to a greater susceptibility to neurodegenerative disease. Allele-specific, or haplotype-specific, gene expression represents a powerful tool to quantify the effect of sequence variation on transcript expression (18,19). Analysis of allele-specific gene expression within a heterozygous sample provides internal control against confounding environmental variables that would otherwise exist between samples. Here, we apply the methodology to investigate haplotype-specific differences both in total MAPT transcript expression, and specifically in exon 10+ (4R) MAPT expression. Importantly, any effect of underlying genetic polymorphic variation on gene expression and splicing is independent of disease status and can be performed either in human neuronal cell lines, or in control post-mortem brain samples, of a known genotype.
Here, we analyse MAPT expression in heterozygous human model neuronal cultures, and in post-mortem brain tissue, where the level of transcript expression between the H1 and H2 chromosomes can be directly compared in the same sample. We find that the H1 haplotype expresses significantly more exon 10+ (4R) MAPT transcript than H2. The deviation in expression from the expected 1:1 ratio is greatest in the globus pallidus, a region consistently affected by tau pathology, where the maximum observed exon 10+ (4R) MAPT H1:H2 transcript ratio is 1.425, (SD=0.205, P<0.0001). These data suggest a mechanism for the increased susceptibility of H1 carriers to neurodegeneration and may explain why the H2 haplotype, which has been shown to confer a protective effect against 4R tauopathy, is under positive selection in Caucasian populations.
RESULTS
Allele-specific expression assay design
Polymorphisms present in coding sequences can be used as a tag to distinguish between allelic transcripts and are required in order to undertake allele-specific expression assays in a heterozygous sample, such as a cell line or in brain tissue. We used three previously defined (10) coding single nucleotide polymorphisms (SNPs) in the MAPT gene as the basis for our haplotype-specific expression assays. SNP 1 (rs17650901) lies in exon 1 and was used to compare total MAPT transcript expression between haplotypes. Two SNPs in exon 9, SNP 9i (rs1052553) and SNP 9ii (rs17652121), were used to specifically assay haplotype-expression of exon 10+ (4R) MAPT mRNA. All three of the SNPs have been previously shown to be in complete LD with the 238 bp insertion/deletion polymorphism in intron 9 used in this study to define the H1 and H2 haplotypes (10) (Fig. 1A).

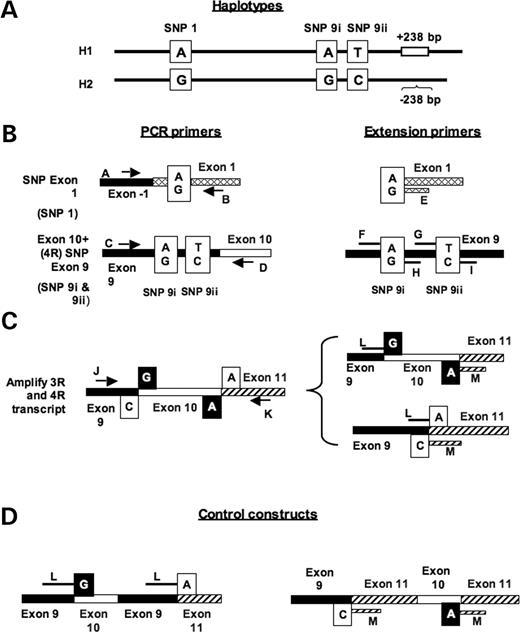

Primer design for MALDI-ToF MS gene expression assays at the human MAPT locus. The methodology requires an RT-PCR reaction, followed by a primer extension reaction and analysis by MALDI-ToF MS. Oligonucleotide identification letters refer to the sequences given in Table 1. (A) The coding polymorphisms SNP 1, SNP 9i and SNP 9ii are in complete LD with each other, and with the 238 bp insertion/deletion polymorphism in intron 9 used to define the H1/H2 haplotype. (B) The RT-PCR primers used to amplify fragments containing the coding SNPs are shown on the left, and the locations of the extension primers used for the single base extension reaction extending to the SNP are shown on the right. The locations of the coding SNPs and the genotypes of the two alternative alleles are shown in boxes, with the H1 allele shown above the H2 allele. (C) The locations of the RT-PCR primers in exons 9 and 11, and the alternative final base of the primer extension reactions extending into alternatively spliced exons, are shown. (D) Structure of artificial control constructs built containing fragments of exons 9, 10 and 11 to normalize the MALDI-ToF data to the expected 1:1 ratio of 4R:3R.
Sequences of DNA oligonucleotides used for quantitative analysis of haplotype-specific gene expression by MALDI-ToF MS. The oligonucleotide ID letters correspond to the oligonucleotide ID letters in Figure 1
| Oligonucleotide | ID | DNA sequence |
|---|---|---|
| MAPT exon 1 SNP forward RT-PCR primer | A | CTT CTC CTC CTC CGC TGT C |
| MAPT exon 1 SNP reverse RT-PCR primer | B | CGT GAT CTT CCA TCA CTT CG |
| MAPT exon 9i and 9ii SNP forward RT-PCR primer | C | CTC CAA AAT CAG GGG ATC G |
| MAPT exon 9i and 9ii SNP reverse RT-PCR primer, specific for exon 10+ transcripts | D | CAC ACT TGG ACT GGA CGT TG |
| MAPT exon 1 SNP reverse MALDI-ToF extension primer | E | GCC ATC CTG GTT CAA AG |
| MAPT exon 9i SNP forward MALDI-ToF extension primer | F | GAG CCC AAG AAG GTG GC |
| MAPT exon 9i SNP reverse MALDI-ToF extension primer | G | TGG AGT ACG GAC CAC |
| MAPT exon 9ii SNP forward MALDI-ToF extension primer | H | CCG ATC TTG GAC TTG AC |
| MAPT exon 9ii SNP reverse MALDI-ToF extension primer | I | ATG CCA GAC CTG AAG AA |
| MAPT exon 9 forward RT-PCR primer | J | GGA GCC CAA GAA GGT GGC |
| MAPT exon 11 reverse RT-PCR primer | K | TGC TCA GGT CAA CTG GTT TG |
| MAPT exon 9 forward into exon 10 or 11 MALDI-ToF extension primer | L | GGA GGC GGG AAG GTG CA |
| MAPT exon 11 reverse into exon 9 or 10 MALDI-ToF extension primer | M | GGT TTG TAG ACT ATT TGC AC |
| Oligonucleotide | ID | DNA sequence |
|---|---|---|
| MAPT exon 1 SNP forward RT-PCR primer | A | CTT CTC CTC CTC CGC TGT C |
| MAPT exon 1 SNP reverse RT-PCR primer | B | CGT GAT CTT CCA TCA CTT CG |
| MAPT exon 9i and 9ii SNP forward RT-PCR primer | C | CTC CAA AAT CAG GGG ATC G |
| MAPT exon 9i and 9ii SNP reverse RT-PCR primer, specific for exon 10+ transcripts | D | CAC ACT TGG ACT GGA CGT TG |
| MAPT exon 1 SNP reverse MALDI-ToF extension primer | E | GCC ATC CTG GTT CAA AG |
| MAPT exon 9i SNP forward MALDI-ToF extension primer | F | GAG CCC AAG AAG GTG GC |
| MAPT exon 9i SNP reverse MALDI-ToF extension primer | G | TGG AGT ACG GAC CAC |
| MAPT exon 9ii SNP forward MALDI-ToF extension primer | H | CCG ATC TTG GAC TTG AC |
| MAPT exon 9ii SNP reverse MALDI-ToF extension primer | I | ATG CCA GAC CTG AAG AA |
| MAPT exon 9 forward RT-PCR primer | J | GGA GCC CAA GAA GGT GGC |
| MAPT exon 11 reverse RT-PCR primer | K | TGC TCA GGT CAA CTG GTT TG |
| MAPT exon 9 forward into exon 10 or 11 MALDI-ToF extension primer | L | GGA GGC GGG AAG GTG CA |
| MAPT exon 11 reverse into exon 9 or 10 MALDI-ToF extension primer | M | GGT TTG TAG ACT ATT TGC AC |
Sequences of DNA oligonucleotides used for quantitative analysis of haplotype-specific gene expression by MALDI-ToF MS. The oligonucleotide ID letters correspond to the oligonucleotide ID letters in Figure 1
| Oligonucleotide | ID | DNA sequence |
|---|---|---|
| MAPT exon 1 SNP forward RT-PCR primer | A | CTT CTC CTC CTC CGC TGT C |
| MAPT exon 1 SNP reverse RT-PCR primer | B | CGT GAT CTT CCA TCA CTT CG |
| MAPT exon 9i and 9ii SNP forward RT-PCR primer | C | CTC CAA AAT CAG GGG ATC G |
| MAPT exon 9i and 9ii SNP reverse RT-PCR primer, specific for exon 10+ transcripts | D | CAC ACT TGG ACT GGA CGT TG |
| MAPT exon 1 SNP reverse MALDI-ToF extension primer | E | GCC ATC CTG GTT CAA AG |
| MAPT exon 9i SNP forward MALDI-ToF extension primer | F | GAG CCC AAG AAG GTG GC |
| MAPT exon 9i SNP reverse MALDI-ToF extension primer | G | TGG AGT ACG GAC CAC |
| MAPT exon 9ii SNP forward MALDI-ToF extension primer | H | CCG ATC TTG GAC TTG AC |
| MAPT exon 9ii SNP reverse MALDI-ToF extension primer | I | ATG CCA GAC CTG AAG AA |
| MAPT exon 9 forward RT-PCR primer | J | GGA GCC CAA GAA GGT GGC |
| MAPT exon 11 reverse RT-PCR primer | K | TGC TCA GGT CAA CTG GTT TG |
| MAPT exon 9 forward into exon 10 or 11 MALDI-ToF extension primer | L | GGA GGC GGG AAG GTG CA |
| MAPT exon 11 reverse into exon 9 or 10 MALDI-ToF extension primer | M | GGT TTG TAG ACT ATT TGC AC |
| Oligonucleotide | ID | DNA sequence |
|---|---|---|
| MAPT exon 1 SNP forward RT-PCR primer | A | CTT CTC CTC CTC CGC TGT C |
| MAPT exon 1 SNP reverse RT-PCR primer | B | CGT GAT CTT CCA TCA CTT CG |
| MAPT exon 9i and 9ii SNP forward RT-PCR primer | C | CTC CAA AAT CAG GGG ATC G |
| MAPT exon 9i and 9ii SNP reverse RT-PCR primer, specific for exon 10+ transcripts | D | CAC ACT TGG ACT GGA CGT TG |
| MAPT exon 1 SNP reverse MALDI-ToF extension primer | E | GCC ATC CTG GTT CAA AG |
| MAPT exon 9i SNP forward MALDI-ToF extension primer | F | GAG CCC AAG AAG GTG GC |
| MAPT exon 9i SNP reverse MALDI-ToF extension primer | G | TGG AGT ACG GAC CAC |
| MAPT exon 9ii SNP forward MALDI-ToF extension primer | H | CCG ATC TTG GAC TTG AC |
| MAPT exon 9ii SNP reverse MALDI-ToF extension primer | I | ATG CCA GAC CTG AAG AA |
| MAPT exon 9 forward RT-PCR primer | J | GGA GCC CAA GAA GGT GGC |
| MAPT exon 11 reverse RT-PCR primer | K | TGC TCA GGT CAA CTG GTT TG |
| MAPT exon 9 forward into exon 10 or 11 MALDI-ToF extension primer | L | GGA GGC GGG AAG GTG CA |
| MAPT exon 11 reverse into exon 9 or 10 MALDI-ToF extension primer | M | GGT TTG TAG ACT ATT TGC AC |
The allele-specific gene expression methodology utilizes a reverse transcription (RT)-PCR reaction, followed by a primer extension reaction using either a forward or reverse extension primer, and then analysis of the base extension products by matrix-assisted laser desorption/ionization-time of flight mass spectrometry (MALDI-ToF MS; see Materials and Methods). The ratio of H1 to H2 MAPT transcripts can be measured in either the total MAPT mRNA pool, or specifically in the exon 10+ (4R) MAPT mRNA pool, depending on the initial RT-PCR primers selected. Details of all the DNA oligonucleotides used in the study are shown in Figure 1 and Table 1. The methodology has significant advantages over quantitative RT-PCR (Q-RT-PCR) because Q-RT-PCR requires that certain assumptions must be made regarding the expression of control genes used to normalize the measurements.
Cell culture models
We first screened a panel of 14 genetically independent human neuronal and three commonly used non-neuronal cell lines for the presence (H1) or absence (H2) of a 238 bp insertion/deletion polymorphism in intron 9 previously used to define the H1 and the H2 haplotypes. Two neuronal lines, SK-N-F1 and SK-N-MC, were found to be H1/H2 heterozygotes, with the remainder being H1/H1 homozygotes (Table 2).
Genotyping summary for a panel of 14 genetically independent human neuronal and three widely used non-neuronal cell lines using the H1/H2-defining 238 bp insertion/deletion marker within intron 9. Lines SK-N-F1 and SK-N-MC were determined to be H1/H2 heterozygotes
| Human cell line | Cell description | Genotype |
|---|---|---|
| Neuronal | ||
| H4 | Neuroglioma | H1/H1 |
| SK-N-DZ | Neuroblastoma | H1/H1 |
| SK-N-F1 | Neuroblastoma | H1/H2 |
| SK-N-AS | Neuroblastoma | H1/H1 |
| BE (2)-M17 | Neuroblastoma | H1/H1 |
| SH-SY-5Y | Neuroblastoma | H1/H1 |
| NT2 | Neuronal precursor-like cells | H1/H1 |
| HCN1A | Cortical neurons | H1/H1 |
| HCN2 | Cortical neurons | H1/H1 |
| CHP-212 | Neuroblastoma | H1/H1 |
| LA-N-5 | Neuroblastoma | H1/H1 |
| Kelly | Neuroblastoma | H1/H1 |
| IMR-32 | Neuroblastoma | H1/H1 |
| SK-N-MC | Neuroblastoma | H1/H2 |
| Non-neuronal | ||
| 293 HEK | Embryonic kidney | H1/H1 |
| HeLa | Carcinoma | H1/H1 |
| MRC5-V2 | Lung fibroblast | H1/H1 |
| Human cell line | Cell description | Genotype |
|---|---|---|
| Neuronal | ||
| H4 | Neuroglioma | H1/H1 |
| SK-N-DZ | Neuroblastoma | H1/H1 |
| SK-N-F1 | Neuroblastoma | H1/H2 |
| SK-N-AS | Neuroblastoma | H1/H1 |
| BE (2)-M17 | Neuroblastoma | H1/H1 |
| SH-SY-5Y | Neuroblastoma | H1/H1 |
| NT2 | Neuronal precursor-like cells | H1/H1 |
| HCN1A | Cortical neurons | H1/H1 |
| HCN2 | Cortical neurons | H1/H1 |
| CHP-212 | Neuroblastoma | H1/H1 |
| LA-N-5 | Neuroblastoma | H1/H1 |
| Kelly | Neuroblastoma | H1/H1 |
| IMR-32 | Neuroblastoma | H1/H1 |
| SK-N-MC | Neuroblastoma | H1/H2 |
| Non-neuronal | ||
| 293 HEK | Embryonic kidney | H1/H1 |
| HeLa | Carcinoma | H1/H1 |
| MRC5-V2 | Lung fibroblast | H1/H1 |
Genotyping summary for a panel of 14 genetically independent human neuronal and three widely used non-neuronal cell lines using the H1/H2-defining 238 bp insertion/deletion marker within intron 9. Lines SK-N-F1 and SK-N-MC were determined to be H1/H2 heterozygotes
| Human cell line | Cell description | Genotype |
|---|---|---|
| Neuronal | ||
| H4 | Neuroglioma | H1/H1 |
| SK-N-DZ | Neuroblastoma | H1/H1 |
| SK-N-F1 | Neuroblastoma | H1/H2 |
| SK-N-AS | Neuroblastoma | H1/H1 |
| BE (2)-M17 | Neuroblastoma | H1/H1 |
| SH-SY-5Y | Neuroblastoma | H1/H1 |
| NT2 | Neuronal precursor-like cells | H1/H1 |
| HCN1A | Cortical neurons | H1/H1 |
| HCN2 | Cortical neurons | H1/H1 |
| CHP-212 | Neuroblastoma | H1/H1 |
| LA-N-5 | Neuroblastoma | H1/H1 |
| Kelly | Neuroblastoma | H1/H1 |
| IMR-32 | Neuroblastoma | H1/H1 |
| SK-N-MC | Neuroblastoma | H1/H2 |
| Non-neuronal | ||
| 293 HEK | Embryonic kidney | H1/H1 |
| HeLa | Carcinoma | H1/H1 |
| MRC5-V2 | Lung fibroblast | H1/H1 |
| Human cell line | Cell description | Genotype |
|---|---|---|
| Neuronal | ||
| H4 | Neuroglioma | H1/H1 |
| SK-N-DZ | Neuroblastoma | H1/H1 |
| SK-N-F1 | Neuroblastoma | H1/H2 |
| SK-N-AS | Neuroblastoma | H1/H1 |
| BE (2)-M17 | Neuroblastoma | H1/H1 |
| SH-SY-5Y | Neuroblastoma | H1/H1 |
| NT2 | Neuronal precursor-like cells | H1/H1 |
| HCN1A | Cortical neurons | H1/H1 |
| HCN2 | Cortical neurons | H1/H1 |
| CHP-212 | Neuroblastoma | H1/H1 |
| LA-N-5 | Neuroblastoma | H1/H1 |
| Kelly | Neuroblastoma | H1/H1 |
| IMR-32 | Neuroblastoma | H1/H1 |
| SK-N-MC | Neuroblastoma | H1/H2 |
| Non-neuronal | ||
| 293 HEK | Embryonic kidney | H1/H1 |
| HeLa | Carcinoma | H1/H1 |
| MRC5-V2 | Lung fibroblast | H1/H1 |
MAPT H1/H2 heterozygous cell lines SK-N-F1 and SK-N-MC were differentiated to induce a neuronal-like phenotype using a two-stage neuronal differentiation protocol originally optimized for use with SH-SY-5Y neuroblastoma cells (20). Briefly, cells plated at low density were first grown in medium supplemented with 10 µm retinoic acid. After 5 days, the retinoic acid supplement was removed and the cells were grown in neurobasal (NB) medium containing 2 mm dibutyryl cyclic AMP plus 50 ng/ml brain derived-neurotrophic factor (BDNF) for a further 5 days (see Materials and Methods). During this differentiation phase, cells stop dividing and extend long, neuronal-like processes. Immunocytochemistry staining showed the differentiated cells now expressed as neuronal marker proteins such as neurofilament protein heavy chain (NF-H), microtubule associated protein 2 (MAP2) and tau (Fig. 2A). To investigate the suitability of the cell cultures to model a pure neuronal population, we then analysed differentiated SK-N-F1 and SK-N-MC cells for the expression of glial fibrillary acidic protein (GFAP), a marker of glial cells (Fig. 2B). Differentiated SK-N-F1 cells did not express GFAP, whereas SK-N-MC cells did, suggesting SK-N-F1 cells represent the better model of gene expression in human neurons.
SK-N-F1 and SK-N-MC neuronal differentiation. (A) Immunocytochemistry analysis in undifferentiated and differentiated cells of the expression of neuronal markers NF-H, MAP2 and tau (green), counter-stained with propidium iodide nuclear stain (red). After the 10 day differentiation process both cell lines extend long, neuronal-like processes and express neuronal markers. (B) Immunocytochemistry analysis of the expression of the glial cell marker GFAP (green) counter-stained with the nuclear stain DAPI (blue). Differentiated SK-N-F1 cells do not express GFAP, whereas SK-N-MC cells do, suggesting SK-N-F1 is a better human cell culture model of neuronal gene expression.
Haplotype-specific expression in neuronal cell cultures
cDNA prepared from SK-N-F1 and SK-N-MC cells differentiated in three separate experiments was used as a template for PCR amplification to analyse allele-specific expression of MAPT using the haplotype-specific coding polymorphisms SNP 1, SNP 9i and SNP 9ii. Comparing total MAPT expression from the H1 and H2 chromosomes using the SNP in the constitutive exon 1 showed a significantly higher level of MAPT H1 transcript expression in SK-N-F1 (P<0.01), and, to a much greater extent, in SK-N-MC (P<0.0001) by one sample t-test (Fig. 3). Performing the initial RT-PCR reaction using a reverse primer in exon 10 specifically sampled from the exon 10+ (4R) MAPT transcript pool revealed a significantly greater expression from the H1 chromosome using both SNP 9i and SNP 9ii in both cell lines (P<0.0001 in all cases by one sample t-test) (Fig. 3). At SNP 9i and SNP 9ii, it was possible to analyse the transcript ratios present by performing the base extension reaction on the RT-PCR product using both the forward and reverse primers. Both the forward and reverse primers independently show higher expression of exon 10+ (4R) MAPT transcript from H1 for both exon 9 SNPs in both cell lines (data not shown).

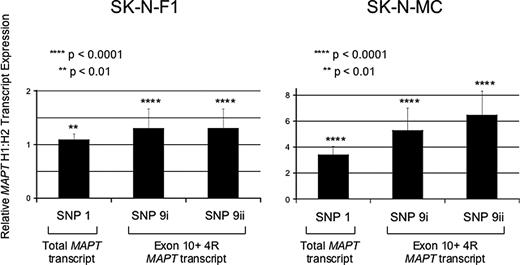

Allele-specific MAPT expression in H1/H2 heterozygous differentiated SK-N-F1 and SK-N-MC neuronal cell lines. The expression data is normalized to the ratio of each SNP present on genomic DNA to produce a standardized transcript ratio. A ratio of >1 at SNP 1 indicates more total MAPT transcript from H1 than H2; a ratio of >1 at SNP 9i and SNP 9ii indicates more exon 10+ (4R) MAPT transcript from H1 than H2. The differentiation process was independently repeated three times and each allele-specific expression analysis was performed in eight (SNP 1) or 16 (SNP 9i and SNP 9ii) replicates as described in Materials and Methods. SNP1: SK-N-F1 MAPT H1:H2 transcript ratio 1.082, SD 0.118, P=0.0025; SK-N-MC MAPT H1:H2 transcript ratio 3.385, SD 0.666, P<0.0001; SNP9i: SK-N-F1 exon 10+ (4R) MAPT H1:H2 ratio 1.294, SD 0.363, P<0.0001; SK-N-MC exon 10+ (4R) MAPT H1:H2 transcript ratio 5.258, SD 1.724, P<0.0001; SNP9ii: SK-N-F1 exon 10+ (4R) MAPT H1:H2 transcript ratio=1.297, SD 0.358, P<0.0001; SK-N-MC exon 10+ (4R) MAPT H1:H2 transcript ratio 6.442, SD 1.875, P<0.0001. All P-values determined by one sample t-test.
Together, these data show that in two independent neuronal cell culture models of MAPT endogenous gene expression, the neurodegeneration-associated MAPT H1 haplotype expresses a significantly greater amount of exon 10+ (4R) MAPT mRNA.
MAPT expression in post-mortem brain tissue
We then extended our study to human post-mortem brain samples. Forty control cases with no evident pathological signs of neurodegenerative disease (Supplementary Material, Table S1) from the Brain Bank held by the Oxford Project to Investigate Memory and Ageing (OPTIMA) were genotyped using the H1/H2 insertion/deletion polymorphism in intron 9. Out of the 40 forty control brains, 14 (35%) were identified as being from H1/H2 heterozygotes, from which we obtained frontal cortex (BA46) and globus pallidus frozen tissue. The globus pallidus and frontal cortex were chosen for gene expression analysis as regions severely affected by NFTs in the 4R-tauopathies PSP and CBD, respectively.
cDNA prepared from both brain regions of the 14 controls was used as a template for PCR amplification followed by primer extension and MALDI-ToF MS analysis. Allele-specific expression analysis of total MAPT transcript using SNP 1 is shown in Figure 4A. We then compared haplotype-specific expression of the neurodegeneration-associated exon 10+ (4R) MAPT mRNA transcript using SNP 9i and SNP 9ii (Fig. 4B and C). The means and standard deviations of the ratios of MAPT H1:H2 transcript expression for all fourteen brains are summarized in Figure 4D.
![Allele-specific MAPT expression in human post-mortem brain tissue from H1/H2 heterozygous controls. The expression data is normalized to the ratio of each SNP present on genomic DNA to produce a standardized transcript ratio. A ratio of >1 indicates more H1-specific transcript than H2. (A) Total MAPT transcript in each of the 14 H1/H2 heterozygotes measured using SNP 1. Mean values and standard deviations from eight measurements using the reverse primer base extension reaction are shown. (B and C) Allele-specific expression in each of the 14 H1/H2 heterozygotes of exon 10+ (4R) MAPT transcript measured using SNP 9i (B) and SNP 9ii (C) in exon 9. Mean values and standard deviations from up to 16 measurements (eight measurements using the forward primer and eight measurements using the reverse primer) are shown. (D) Mean values and standard deviations of relative H1:H2 expression averaged from all 14 H1/H2 heterozygotes. No significant difference is seen in the ratio of total MAPT transcript at SNP 1 (mean MAPT H1:H2 transcript ratio for frontal cortex 1.016; SD 0.067; P=0.388, and for globus pallidus mean MAPT H1:H2 transcript ratio 1.029; SD 0.079; P 0.193), however, highly significant differences exist in allelic expression of exon 10+ (4R) MAPT as measured by both SNPs in exon 9 in globus pallidus [SNP 9i mean exon 10+ (4R) MAPT H1:H2 transcript ratio 1.425, SD 0.205, P<0.0001; SNP 9ii exon 10+ (4R) MAPT H1:H2 transcript ratio 1.296, SD 0.213, P=0.0002 and frontal cortex; SNP 9i exon 10+ (4R) MAPT H1:H2 transcript ratio 1.291, SD 0.315, P=0.006; SNP exon 10+ (4R) MAPT 9ii H1:H2 transcript ratio 1.159, SD 0.104, P=0.0001]. All P-values calculated by one sample t-test.](https://oup.silverchair-cdn.com/oup/backfile/Content_public/Journal/hmg/15/24/10.1093_hmg_ddl429/2/m_ddl42904.jpeg?Expires=1747910132&Signature=cV2A0bWA3n65jS9-Y3xAQuLEiQoID83byE-op8H9hoayfItpYZwsSzJQnV3jgXv0QC-KH0SjnwCrndHtTRG9JrSIR~B3xPIdfOYvzDUOlCJPKFMGPh12j~RdqqOvYtaJWe7f0-dpMtmyi5VvASsfyoKb-vKRiAmfUeuKx1MTTIWKIhvm06hig80D1U2M0cz6UN7-XQ6jc4iHW~dx4j1O52FZP9dSTQ543coDyq~DqBp6ID6IYiek0PJlE9FxfWU~lC63G~MIXWEUCribVkZmzJGpqlIi03we1UVNKjCUM7VhorOwZcwxQ989vDY0PmjGgo18dYcMFIFhQrd5r~8eog__&Key-Pair-Id=APKAIE5G5CRDK6RD3PGA)
Allele-specific MAPT expression in human post-mortem brain tissue from H1/H2 heterozygous controls. The expression data is normalized to the ratio of each SNP present on genomic DNA to produce a standardized transcript ratio. A ratio of >1 indicates more H1-specific transcript than H2. (A) Total MAPT transcript in each of the 14 H1/H2 heterozygotes measured using SNP 1. Mean values and standard deviations from eight measurements using the reverse primer base extension reaction are shown. (B and C) Allele-specific expression in each of the 14 H1/H2 heterozygotes of exon 10+ (4R) MAPT transcript measured using SNP 9i (B) and SNP 9ii (C) in exon 9. Mean values and standard deviations from up to 16 measurements (eight measurements using the forward primer and eight measurements using the reverse primer) are shown. (D) Mean values and standard deviations of relative H1:H2 expression averaged from all 14 H1/H2 heterozygotes. No significant difference is seen in the ratio of total MAPT transcript at SNP 1 (mean MAPT H1:H2 transcript ratio for frontal cortex 1.016; SD 0.067; P=0.388, and for globus pallidus mean MAPT H1:H2 transcript ratio 1.029; SD 0.079; P 0.193), however, highly significant differences exist in allelic expression of exon 10+ (4R) MAPT as measured by both SNPs in exon 9 in globus pallidus [SNP 9i mean exon 10+ (4R) MAPT H1:H2 transcript ratio 1.425, SD 0.205, P<0.0001; SNP 9ii exon 10+ (4R) MAPT H1:H2 transcript ratio 1.296, SD 0.213, P=0.0002 and frontal cortex; SNP 9i exon 10+ (4R) MAPT H1:H2 transcript ratio 1.291, SD 0.315, P=0.006; SNP exon 10+ (4R) MAPT 9ii H1:H2 transcript ratio 1.159, SD 0.104, P=0.0001]. All P-values calculated by one sample t-test.
The mean MAPT H1:H2 transcript ratio for the 14 brains for total MAPT expression showed no allelic difference in expression (frontal cortex mean MAPT H1:H2 transcript ratio=1.016, SD=0.067, P=0.388 by one sample t-test, and for globus pallidus mean MAPT H1:H2 transcript ratio=1.029, SD=0.079, P=0.193 by one sample t-test). However, the mean MAPT H1:H2 transcript ratio for the fourteen brains for exon 10+ (4R) MAPT mRNA transcript shows a significant allelic difference in expression towards H1. In the globus pallidus, a region of the brain known to be highly susceptible to neurodegeneration in PSP, the more common 4R-tauopathy, there is the largest deviation in mean allelic expression, with H1 contributing on an average 1.30 to 1.43-fold more exon 10+ (4R) MAPT mRNA than H2 [at SNP 9i the mean exon 10+ (4R) MAPT H1:H2 transcript ratio=1.425, SD=0.205, P<0.0001 by one sample t-test; at SNP 9ii exon 10+ (4R) MAPT H1:H2 transcript ratio=1.296, SD=0.213, P=0.0002 by one sample t-test]. In the frontal cortex, a region affected in the rarer CBD, there is also a highly significant difference in contribution from the two alleles, with H1 contributing on an average 1.16 to 1.29-fold more exon 10+ (4R) MAPT mRNA [at SNP 9i exon 10+ (4R) MAPT H1:H2 transcript ratio=1.291, SD=0.315, P=0.006 by one sample t-test; at SNP 9ii exon 10+ (4R) MAPT H1:H2 transcript ratio=1.159, SD=0.104, P=0.0001 by one sample t-test].
In summary, the data show first, that the strength of the MAPT genomic DNA promoter does not vary significantly between the H1 and H2 chromosomes in human brain tissue as assayed at SNP 1, and second, that the H1 chromosome expresses a significantly greater amount of exon 10+ (4R) MAPT mRNA than H2, with the greatest deviation of up to 1.43-fold found in the globus pallidus and 1.29-fold in the frontal cortex. Our data suggest it is this relative over-expression of exon 10+ (4R) MAPT mRNA from H1 which may contribute to the susceptibility to tauopathy. We analysed expression of exon 10+ (4R) MAPT transcripts using forward and reverse primer base extension reactions at SNP 9i and 9ii to measure allelic differences. Importantly, the independent forward and reverse primer data at both SNPs in both brain regions were consistent in showing significant over-expression of exon10+ (4R) MAPT transcript from H1 compared to H2 (data not shown).
Recent work has uncovered sequence variation within the H1 haplotype and identified H1 sub-haplotypes associated with PSP (15,21,22), AD (13) and PD (14). We genotyped the H1/H2 brain tissue for SNPs rs1467967, rs242557/htSNP167, rs3785883, rs2471738 and rs7521 to determine the H1 sub-haplotype present (21,22). We first subdivided the brain samples into two groups (‘A’ allele: n=7; ‘G’ allele: n=7) based on the SNP rs242557/htSNP167 in intron 0, proposed as an SNP within a transcription-binding site responsible for modulating total MAPT transcript expression (22). There was no significant difference between the H1:H2 transcript ratios between the ‘A’ and ‘G’ allele samples in globus pallidus (P=0.533) or frontal cortex (P=0.069) by Student's t-test. In a second analysis, we subdivided the 14 heterozygote samples based on the presence or absence of the proposed Class II haplotype (21), which includes the two alleles conferring greatest risk to PSP, rs242557 and rs2471738. In this analysis (Class II: n=4; non-Class II: n=10) there was no significant difference between the levels of total MAPT H1:H2 transcript ratios between the Class II and non-Class II haplotype samples in the globus pallidus (P=0.554) or frontal cortex (P=0.269) by Student's t-test.
MAPT splice ratios in different brain regions
These data suggest that allele-specific differences of MAPT exon 10 expression in the brain, particularly in the globus pallidus, contribute to the susceptibility to suffering from 4R-tauopathies. We used the MALDI-ToF MS platform to further investigate the ratio of exon 10+ (4R) to exon 10− (3R) MAPT transcript levels in the globus pallidus and frontal cortex using the assay shown in Figure 1B and C. We found that in 13 of the 14 (93%) control brains, the ratio of MAPT 4R:3R transcripts was significantly higher in the globus pallidus than the frontal cortex (P<0.0001 in each individual brain by one sample t-test), with the ratio ranging from 1.3 to 3.5 (mean=1.652, SD=0.6180) (Fig. 5). This higher 4R:3R MAPT transcript ratio in the globus pallidus compared to the frontal cortex in control brain tissue provides a further link between MAPT gene expression and the greater susceptibility of the globus pallidus to accumulating 4R-tau NFTs compared to the frontal cortex.

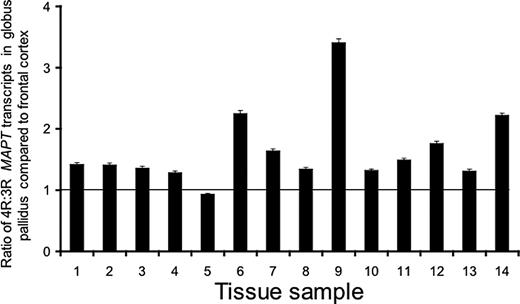

The MAPT 4R : 3R transcript ratio is greater in the globus pallidus than in the frontal cortex in 13 of the 14 (93%) control brains. With only one exception, the ratio of 4R:3R transcripts was significantly higher in the globus pallidus than the frontal cortex (P<0.0001 in each individual brain by one sample t-test), with the ratio of transcripts ranging from 1.3 to 3.5 (mean 1.652, SD 0.618). The frontal cortex and globus pallidus splicing data were normalized to a ratio of one using the control constructs in Figure 1C. A value of 1 indicates that the 4R:3R ratios in the globus pallidus and frontal cortex are equal. For frontal cortex and globus pallidus measurements 16 assays were performed (eight using the forward primer and eight with the reverse primer) to calculate the mean and standard deviation.
DISCUSSION
Functionally important sequence variation in the human genome lying outside coding regions is likely to be critically important in the understanding of human disease. As we rapidly accumulate DNA sequence data for the human genome, it is becoming increasingly important to utilize methodologies to help us uncover the effect of polymorphic variation on gene expression. Allele-specific, or haplotype-specific, gene expression represents a powerful tool to quantify the effect of genomic variation on gene expression.
Traditionally, candidate gene analysis has focused on coding variants. However, several recent studies examining susceptibility to neurological disorders have found strong association with disease of specific alleles or haplotypes lacking obvious changes in protein-coding sequences. In such cases, detailed investigation has focused on variation in gene expression regulated by non-coding polymorphisms. A study investigating the genetic basis of dyslexia found association to a 77 kb region on chromosome 6p22 (23). One risk haplotype was identified within this region that contained no coding variants. Further investigation revealed ~40% relative reduction in expression of the KIAA0319 gene from this risk haplotype (24). Allele-specific expression analysis has also been applied at two loci that have been identified as candidates conferring susceptibility to schizophrenia: catechol-O-methyltransferase (COMT) (25) and dystrobrevin binding protein 1 (DTNBP1) (26). At the COMT locus on chromosome 22q11, mRNA transcripts bearing an allele associated with schizophrenia showed an average of 17% relative reduction in expression (25). At the DTNBP1 locus on chromosome 6p22, the schizophrenia-associated risk haplotype showed 21% less expression of DTNBP1 compared to chromosomes bearing either one of two non-risk haplotypes (26). A study on promoter polymorphisms in the GABAA receptor beta3 subunit (GABRB3) gene used in vitro luciferase reporter assays to demonstrate a 40% reduction of GABRB3 from a promoter haplotype associated with childhood absence epilepsy (CAE) (27). Finally, a study of expression of APOE in human brain tissue revealed a 15–25% increase in expression of the ε4 allele of the APOE gene, the strongest risk factor for late onset AD (28). In each case discussed above, the subtle changes in relative gene expression between risk and non-risk alleles have been suggested as a functional mechanism whereby a risk haplotype confers susceptibility to disease.
The genetic association of the MAPT sequence variation with PSP and CBD is well-established and has been widely replicated since the first studies (11,29). The associations with PD (14,30–33) and AD (13) are more recent, but do, however, support recent suggestions that genetic variation in expression and splicing at the MAPT locus may be critical to a wide range of neurodegenerative disorders (34). Finally, recent findings suggesting aberrations in 4R:3R ratios in mild-cognitive impairment and AD (8,9) support the involvement of MAPT from the earliest stages of disease.
There are two potential mechanisms by which haplotype-specific expression at the MAPT locus may confer susceptibility to tauopathy: there may be allelic variation in total MAPT expression, or in expression of a disease-susceptibility variant. Our study has used allele-specific gene expression assays in H1/H2 heterozygous neuronal cell cultures and post-mortem brain tissue to test the specific hypothesis that H1 chromosomes express a greater amount of exon 10+ (4R) MAPT mRNA than H2 chromosomes. We show that the H1 chromosome makes a greater contribution, by up to 1.43-fold in the globus pallidus and 1.29-fold in the frontal cortex, specifically to the disease-critical exon 10+ (4R) MAPT transcript pool, but that total levels of MAPT expression are not significantly different between H1 and H2. We identify one MAPT H1/H2 heterozygous cell line in particular, SK-N-F1, as being an excellent model of neuronal gene expression expressing only neuronal markers post-differentiation. We show there is good consistency both within the SK-N-F1 cell line, with SNP 9i and SNP 9ii both showing a 1.3-fold over-expression of exon 10+ (4R) MAPT mRNA from the H1 chromosome, and between the cell line and the human post-mortem brain tissue. The close fit of the SK-N-F1 neuronal cell data and the human post-mortem tissue data suggest that the differences we observe in the brain tissue may come from haplotype-specific differences in MAPT transcript splicing in neurons.
We propose, therefore, that greater expression of exon 10+ (4R) MAPT mRNA from the H1 chromosome leads to subtle, higher levels of exon 10+ (4R) MAPT transcript in H1 carriers resulting in a greater susceptibility to neurodegenerative disease. The H2 chromosome expresses relatively less 4R MAPT mRNA, which is consistent with many studies reporting it to be a protective factor against PSP, and may explain why it is spreading under positive selection in Caucasian populations (17).
Previous studies (22,33) have used reporter gene assays to demonstrate differences in the levels of expression driven by small promoter fragments of the MAPT gene. The data obtained in such studies should be interpreted cautiously because the experimental design relies upon using small promoter fragments isolated from their correct genomic context. One study (33) used a ∼1 kb fragment of promoter region and found that the H2 promoter was weaker than H1 in 293 kidney cells and SK-N-MC cells. Their result in SK-N-MC cells is consistent with our data showing a high relative over-expression of H1, although this may not reflect the situation in vivo. A second paper (22) reported results from a luciferase reporter gene study in which a small 182 bp fragment containing htSNP167 from deep within intron 0 was tested for enhancer activity. Surprisingly, the non-risk variant was found to be more transcriptionally active, although the biological relevance of this finding is unclear.
The significant advantage of our work compared to reporter gene studies using short fragments of DNA is that we are comparing expression of H1 and H2 transcripts from the actual MAPT genomic DNA locus in its correct chromosomal location in an internally controlled experiment. By analysing gene expression from the complete and intact MAPT locus, we have been able for the first time to study the effect of MAPT haplotype on the ratio of expression of 4R:3R transcript. We propose it is the haplotype-specific difference in exon 10+ (4R) MAPT expression, rather than a haplotype-specific difference in MAPT promoter activity that underlies the mechanism by which H1 contributes to disease susceptibility. Finally, the experimental design of a within-sample analysis between two loci of a heterozygous sample eliminates confounding environmental factors that would create a high level of noise in a between-sample analysis of post-mortem brain tissue, such as co-morbidity, age at death, cause of death and sample quality.
We find strong evidence for allelic differences in expression of exon 10+ (4R) MAPT mRNA between the H1 and H2 chromosomes. It is also possible that there may be more subtle differences in expression between different sub-haplotypes of H1, but that our sample size is too small to be further subdivided to detect small differences. Importantly, the SNPs defining the H1 sub-haplotypes do not include a coding SNP, which means it is not possible to perform a direct comparison using the method of analysis we describe.
We observed the most dramatic relative over-expression of exon 10+ (4R) MAPT mRNA from H1 in the globus pallidus, a region of the basal ganglia severely affected by NFTs in PSP, and also to a lesser extent in CBD. We showed that in 13 of the 14 brains with no overt neuropathology, the 4R:3R MAPT transcript ratio was higher in the globus pallidus than frontal cortex. This provides a further link at the molecular level with pathology and may explain why the globus pallidus is more susceptible to suffering a build-up of NFTs than the frontal cortex.
The human MAPT locus spans 130 987 bp from first to last exon. Complete sequence available for both H1 and H2 chromosomes shows that to be approximately one SNP approximately every 200 bp, and an insertion/deletion every 1 kb (www.genome.ucsc.edu). As with other complex disease loci it remains an enormous challenge to attempt to define which of the polymorphic variants is responsible for differences in gene expression observed between haplotypes in MAPT. Work in our laboratory is now focused on using novel bacterial artificial chromosomes (BAC)-based genomic DNA expression systems to dissect the functional importance of sequence variation at the MAPT locus (35,36).
MATERIALS AND METHODS
Cell culture
The following neuronal cell lines were purchased from the European Collection of Cell Cultures (ECACC): SH-SY-5Y (ECACC no. 94030304), SK-N-AS (ECACC no. 94092302), SK-N-DZ (ECACC no. 94092305), SK-N-F1 (ECACC no. 94092304), IMR-32 (ECACC no. 86041809), SK-N-MC (ECACC no. 90022302) and KELLY (ECACC no. 922110411). The following neuronal cell lines were purchased from the American Tissue Culture Collection (ATCC): HCN1A (ATCC no. CRL10442) and HCN2 (ATCC no. CRL10742). Cell line LA-N-5 was a generous gift of R.C. Seeger (Children's Hospital, Los Angeles, CA, USA), cell line CHP-212 was a generous gift of P. Forgez (Hopital Saint-Antoine, Paris, France), cell line BE (2)-M17 was a generous gift of J. Bakowska (NIH, Bethesda, MD, USA), cell line H4 was a generous gift of M. Ingelsson (Massachusetts General Hospital, Boston, MA, USA), cell line NT2 was a generous gift of D. Pleasure (Children's Hospital of Philadelphia, Philadelphia, PA, USA), and the glial cell line Gli-17 was a kind gift of David Louis (Massachusetts General Hospital, Boston, MA, USA). Cell lines were cultured following suppliers' instructions specific to each line. DNA was extracted from cells by a standard proteinase K digestion/phenol:chloroform extraction protocol.
Cell lines SK-N-F1 and SK-N-MC were differentiated into neuronal-like cells following a two-stage protocol originally developed for SHSY5Y cells and was performed as previously described (20). Cells were plated at low density (3–5×103 cells/cm2) in their recommended growth media. After 24 h, the growth media for SK-N-F1 and SK-N-MC was changed to DMEM and EMEM (EBSS), respectively, supplemented with 5% fetal calf serum, 2 mm L-glutamine, 100 U/ml penicillin and 0.1 mg/ml streptomycin and 10 µM retinoic acid. The whole media was changed every 48 h. After 5 days, medium containing retinoic acid was removed and replaced with NB medium supplemented with B-27 (Invitrogen), 2 mm GlutaMax I (Invitrogen), 20 mm KCl, 2 mm dibutyryl cyclic AMP (Sigma) plus 50 ng/ml BDNF (Sigma). Cells were cultured in this medium for a further 5 days before staining by immunocytochemistry using Tau-1 (Chemicon), NF-H (Sigma), MAP2 (Chemicon), and GFAP (Promega) antibodies. Slides were mounted using Vectashield mounting medium with propodium iodide or Vectashield mounting medium with DAPI (Vector Laboratories). The secondary antibody Alexa Fluor 488 goat anti-mouse IgG (Molecular Probes) was used with the Tau-1 and NF-H antibodies, and Alexa Fluor 488 goat anti-rabbit IgG was used with the MAP2 and GFAP antibodies. Total RNA was extracted from SK-N-F1 and SK-N-MC cells from three independent differentiation experiments using Trizol reagent (Invitrogen) followed by an additional purification step using an RNeasy Mini Kit (Qiagen).
Post-mortem brain material
Anonymous brain tissue from frontal cortex (BA46) and globus pallidus of 40 fresh-frozen control brains with no evident pathological signs of neurodegenerative disease (Supplementary Material, Table S1) was obtained from the Brain Bank of the OPTIMA. All OPTIMA brains are collected under ethically approved conditions with full consent of the patient and with approval of the local Ethics Committee (COREC approval number 1656). The analysis of gene expression undertaken here has also been approved by local Ethics Committee review, reference 06/Q1605/8. The mean age at death of the 14 H1/H2 heterozygous individuals studied for MAPT expression was 82 years (SD 8.7). DNA was extracted from frontal cortex material using a Nucleon Genomic DNA Extraction for hard tissue (Tepnel Life Sciences). Total RNA was extracted from frontal cortex and globus pallidus post-mortem brain samples cells by initially homogenizing the samples in Trizol reagent (Invitrogen) followed by a column purification using the RNeasy Mini Kit (Qiagen).
MAPT genotyping
MAPT H1/H2 genotyping was performed on brain samples and cell lines using the 238 bp insertion/deletion polymorphism in intron 9 previously shown to be an unambiguous tag defining H1 and H2. Previously described (10) PCR primers 5′-GGAAGACGTTCTCACTGATCTG-3′ (forward) and 5′-AGGAGTCTGGCTTCAGTCTCTC-3′ (reverse) flanking the insertion/deletion were used to genotype all cell lines and brain tissue. Typing of the H1/H2 control brain samples for SNPs rs1467967, rs242557, rs3785883, rs2471738 and rs7521 was performed as previously described (15).
Allele-specific expression analysis
RNA (1 µg) prepared from cultured cells or post-mortem brain material was reverse transcribed into cDNA using Superscript First Strand Synthesis Kit (Invitrogen) in a 20 µl reaction. For PCR amplification, 0.5 µl of cDNA was used for PCR amplification using AmpliTaq Gold DNA polymerase (Applied Biosystems) and Pfu Turbo DNA Polymersase (Stratagene). The specific location at the MAPT locus of each RT-PCR primer used is shown in Figure 1 and the complete sequences are given in Table 1.
Quantitation of haplotype-specific gene expression
DNA fragments amplified by PCR were treated by exonuclease I (New England BioLabs) to remove residual primers, followed by incubation with shrimp alkaline phosphatase (Amersham Biosciences) to dephosphorylate unincorporated deoxynucleotides. The fragments were then used as templates for a primer extension reaction using a mixture of three dideoxynucleotides and one deoxynucleotide in the reaction. The primer extension reaction products were then analysed by MALDI-ToF MS using the MassARRAY system on Sequenom platform. Each MALDI-ToF MS assay was repeated eight times, comprising four independent RT-PCR reactions, each analysed in duplicate. Three well-characterized haplotype-specific SNPs in complete LD with the 238 bp insertion/deletion polymorphism in intron 9 (10) used to define H1 and H2 were used to identify chromosome-specific transcripts and then quantify their relative amounts (Fig. 1). For SNP 1 (rs17650901), each assay was performed eight times using the reverse extension primer. For SNP 9i (rs1052553) and SNP 9ii (rs17652121) each assay was performed eight times using both the forward and reverse extension primers as independent assays and a mean of the 16 readings was taken, with three exceptions for SNP 9i in which only the reverse extension primer was used. The MassARRAY data were processed by the Sequenom SpectroTYPER software to obtain the area under the primer extension product trace curves. Genomic DNA was used to produce a standardized ratio equivalent to equal expression from each chromosome. In the case of assays to measure ratios of 4R:3R splice variants, artificial constructs were prepared containing fragments of exons 9, 10 and 11. Each construct contains a single copy of exon junctions and was therefore used as the normalizing control (Fig. 1). Statistical analysis was performed as previously described (24) using a one sample t-test that calculates a P-value indicating the significance of the observed allelic differences in expression from the expected ratio of 1.
SUPPLEMENTARY MATERIAL
Supplementary Material is available at HMG Online.
ACKNOWLEDGEMENTS
This work was supported by a Research Career Development Fellowship awarded to R.W.-M. from the Wellcome Trust and by a Clarendon Fund Bursary awarded to TMC. The authors would like to thank Emma Banfield and Jennifer Taylor for advice on statistical analysis, Carolyn Sloane for sample preparation, David Smith for access to OPTIMA resources, and Clyde Francks and Anthony P. Monaco for frequent help and discussion.
Conflict of Interest statement. None declared.
