Fernando L. Mendez, Joseph C. Watkins, Michael F. Hammer; Global Genetic Variation at OAS1 Provides Evidence of Archaic Admixture in Melanesian Populations, Molecular Biology and Evolution, Volume 29, Issue 6, 1 June 2012, Pages 1513–1520, https://doi.org/10.1093/molbev/msr301
Download citation file:
© 2018 Oxford University Press
Close -
Share
Abstract
Recent analysis of DNA extracted from two Eurasian forms of archaic human shows that more genetic variants are shared with humans currently living in Eurasia than with anatomically modern humans in sub-Saharan Africa. Although these genome-wide average measures of genetic similarity are consistent with the hypothesis of archaic admixture in Eurasia, analyses of individual loci exhibiting the signal of archaic introgression are needed to test alternative hypotheses and investigate the admixture process. Here, we provide a detailed sequence analysis of the innate immune gene OAS1, a locus with a divergent Melanesian haplotype that is very similar to the Denisova sequence from the Altai region of Siberia. We resequenced a 7-kb region encompassing the OAS1 gene in 88 individuals from six Old World populations (San, Biaka, Mandenka, French Basque, Han Chinese, and Papua New Guineans) and discovered previously unknown and ancient genetic variation. The 5′ region of this gene has unusual patterns of diversity, including 1) higher levels of nucleotide diversity in Papuans than in sub-Saharan Africans, 2) very deep ancestry with an estimated time to the most recent common ancestor of >3 myr, and 3) a basal branching pattern with Papuan individuals on either side of the rooted network. A global geographic survey of >1,500 individuals showed that the divergent Papuan haplotype is nearly restricted to populations from eastern Indonesia and Melanesia. Polymorphic sites within this haplotype are shared with the draft Denisova genome over a span of ∼90 kb and are associated with an extended block of linkage disequilibrium, supporting the hypothesis that this haplotype introgressed from an archaic source that likely lived in Eurasia.
Introduction
Recent publications of the draft genomes of two archaic forms of Homo sapiens have reinvigorated the debate on the structure of ancient human populations. Although it is broadly accepted that the majority of extant human genome diversity traces to anatomically modern populations that lived in Africa ∼100 thousand years ago (kya), the question of the extent of admixture with populations of archaic humans is still open. Full genome comparisons of the Neandertal and Denisova draft genomes with modern human sequences have revealed different amounts of shared ancestry between each of these archaic forms and anatomically modern human (AMH) populations from different geographic regions. For example, a higher proportion of single nucleotide polymorphisms (SNPs) was shared between non-African and Neandertal and between Melanesian and the Denisova genomes, than between either Neandertal or Denisova and extant African genomes (Green et al. 2010; Reich et al. 2010). An intriguing possibility is that these patterns result from introgression of archaic genes into AMH populations in Eurasia. However, this SNP sharing pattern could also be explained by ancestral population structure in Africa (i.e., without the need to posit introgression). For example, if non-Africans and the ancestors of Neandertals descend from the same deme in a subdivided African population, and this structure persisted with low levels of gene flow among African residents until the ancestors of non-Africans migrated into Eurasia, then we would expect more SNP sharing between non-Africans and Neandertals (Durand et al. 2011).
As average measures of genetic similarity across the genome are compatible with several hypotheses (Reich et al. 2010; Durand et al. 2011), detailed studies of genetic regions that have introgressed are needed to distinguish among alternatives and increase our understanding of the admixture process. Unlike demographic processes that have similar effects across the genome, archaic introgression is not expected to impact all loci equally. After interbreeding occurs, the processes of recombination and genetic drift will leave a patchwork of loci carrying the signal of introgression. Analysis of the distribution of these loci and their patterns of variation may provide increased power to characterize the introgression process.
Here, we identify an OAS1 haplotype that exhibits the signature of archaic introgression. The OAS1 gene encodes for an enzyme (2′-5′ oligoadenylate synthetase 1) with an important antiviral function that is involved in the innate immune response. Association studies have implicated variants at OAS1 with susceptibility to infectious diseases (e.g., West Nile Fever and severe acute respiratory syndrome [SARS]) (Hamano et al. 2005; Lim et al. 2009 ), severity of Hepatitis C infections (Knapp et al. 2003), and susceptibility to the autoimmune disorder multiple sclerosis (Fedetz et al. 2006). These findings make OAS1 a good candidate for studies of local adaptation and differentiation among populations. We resequence a DNA segment of >7 kb encompassing this gene in six human populations from Africa, Europe, Asia, and Melanesia. In the 5′ region of the OAS1 gene, we find the highest levels of nucleotide diversity in samples from Melanesia and identify a divergent Melanesian haplotype that shares SNPs with the Denisova OAS1 sequence. We also perform extended resequencing on chromosomes carrying the unusual haplotype, survey diagnostic SNPs in a large global panel of samples, measure levels of linkage disequilibrium (LD), and estimate divergence times for the branching between the unusual lineage and the human reference sequence. These results are consistent with a model of recent introgression of a segment containing the OAS1 gene from an archaic source that likely lived in Eurasia.
Materials and Methods
Samples
Three panels of samples were used in this work. The first panel (referred to as the “diversity” panel), previously described (Wall et al. 2008; Hammer et al. 2010), consists of 88 individuals from three sub-Saharan African populations (10 San from Tsumkwe in Namibia, 16 Mandenka from Senegal, 15 Biaka Pygmy from the Central African Republic), one European population (16 Basque from France), one East Asian population (16 Han from China), and one Oceanian population (15 Papuans from the highlands of New Guinea). The second panel, referred to as the “Melanesian” panel, consists of five Melanesian individuals (four Papua New Guineans and one from Vanuatu) that are homozygous for an unusually divergent haplotype (see Results and Discussion). The diversity and Melanesian panels were used for resequencing surveys, whereas a third panel (the “genotyping” panel) was used for genotyping particular SNPs within the OAS1 region. The genotyping panel includes 1,572 samples from globally distributed populations (Karafet et al. 1999, 2001; Hammer et al. 2001; Cox et al. 2008).
Resequencing and Genotyping
In what follows, all positions are based on the 2006 build of the human genome (hg18). Five amplicons covering 7,048 bp of the OAS1 gene were sequenced in all individuals in the diversity panel as well as in chimpanzee, bonobo, and gorilla. The sequence, which spans bases 111828677–111842221, covers the first six exons of the gene and contains all the information for the isoforms p42, p46, and p48 (fig. 1; supplementary table S1, see supplementary table S2a for primer sequences, supplementary material, Supplementary Material online). For simplicity, we abbreviate positions on the chromosome by referring only to the last five digits, that is, by dropping the “1118” throughout the main text. The Melanesian panel was resequenced for an extended region that includes positions 20038–42221 (for additional primer sequences, see supplementary table S2b, Supplementary Material online). The genotyping panel was typed using restriction digests for SNPs diagnostic of newly described lineages (supplementary table S2c, Supplementary Material online). The inferred geographic occurrences of the deep lineage (described in Results) were plotted using Generic Mapping Tools (Wessel and Smith 1998).

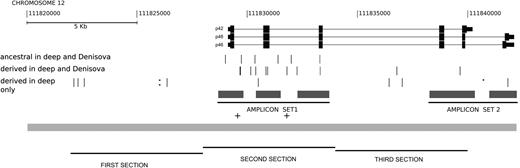

Sequenced region on chromosome 12. Schematic representation of three splicing variants for isoforms p42, p48, and p46 of the gene OAS1 (top), amplicons in sets 1 and 2 (gray boxes), and the region covered by extended resequencing (gray bar). Exons are represented by black boxes, joined by thin horizontal lines representing introns. The approximate positions of two genotyped SNPs are indicated with a plus sign “+.” Coordinates correspond to the hg18 build of the human genome. Three rows of thin vertical lines indicate sites ancestral only in the deep lineage (first row), derived mutations common only to the deep lineage and the Denisova sequence (second row), and mutations present only in the deep lineage (third row). Polymorphisms with no sequence coverage in Denisova are indicated with asterisks “*” (third row). Amplicon sets 1 and 2 are analyzed in the main text and supplementary material (Supplementary Material online), respectively. The three sections for the extended resequencing are 6 kb each and are compared on the values of divergence between the deep lineage and the reference (see Results).
Sequenced region on chromosome 12. Schematic representation of three splicing variants for isoforms p42, p48, and p46 of the gene OAS1 (top), amplicons in sets 1 and 2 (gray boxes), and the region covered by extended resequencing (gray bar). Exons are represented by black boxes, joined by thin horizontal lines representing introns. The approximate positions of two genotyped SNPs are indicated with a plus sign “+.” Coordinates correspond to the hg18 build of the human genome. Three rows of thin vertical lines indicate sites ancestral only in the deep lineage (first row), derived mutations common only to the deep lineage and the Denisova sequence (second row), and mutations present only in the deep lineage (third row). Polymorphisms with no sequence coverage in Denisova are indicated with asterisks “*” (third row). Amplicon sets 1 and 2 are analyzed in the main text and supplementary material (Supplementary Material online), respectively. The three sections for the extended resequencing are 6 kb each and are compared on the values of divergence between the deep lineage and the reference (see Results).
Sequence Analysis
The ancestral state at each polymorphic site in humans was inferred using sequences of the great apes. The polymorphic point mutations in each population were used to construct the corresponding frequency spectra. Estimates of the population mutation rate (Watterson 1975; Tajima 1983) and Tajima's D values (Tajima 1989) were obtained for each individual amplicon (supplementary material, Supplementary Material online) and for two sets of amplicons: amplicon set 1 (amplicons 1–3) and amplicon set 2 (amplicons 4–5) (fig. 1). These two amplicon sets, which consist of a similar number of nucleotides (3,733 and 3,315 bp, respectively) and encompass exons 1–3 and 4–6, respectively, are separated by a noncoding region of ∼4.5 kb.
Phasing and Networks
PHASE v2.1 (Li and Stephens 2003; Stephens and Donnelly 2003) was used to perform phasing of the resequence data as well as to infer recombination rates from Yoruba HapMap phase II data (www.hapmap.org, supplementary material, Supplementary Material online). Median-joining networks were generated using Network 4.5.1.6 (http://www.fluxus-engineering.com/sharenet.htm) with equal weight for each mutation. Only SNPs were used to generate the network. A recombinant Papuan individual as well as a potentially gene converted polymorphism at position 29579 were removed from the network of amplicon set 1 (supplementary material, Supplementary Material online).
Divergence Time and TMRCA
To estimate the divergence time for a pair of human sequences, we assumed the divergence time between human and chimpanzee to be 6 Ma. First, we compared the sequences of two human lineages and a single chimpanzee and estimated the ratio between the human–human and human–chimpanzee divergence times. We then multiplied this ratio by the divergence time between human and chimpanzee lineages to obtain an estimate of the divergence time for the pair of human lineages. The ratio of the human–human and human–chimpanzee divergence times was estimated by first considering the point mutations derived on the human lineages (we ignore mutations in the chimpanzee lineage). Given the total number of mutations and assuming a constant mutation rate, the number of mutations shared between the human lineages, or private to each lineage, is distributed according to a multinomial distribution (Mendez et al. 2011). The parameters for the multinomial distribution are the length of the branches relative to that of the whole genealogy. When both human sequences were available (modern human lineages), the mutations private to each lineage were pooled. In comparisons involving the incomplete Denisova sequence, only the mutations in the modern human lineage were used (supplementary material, Supplementary Material online). This approach is necessary because the sampling time for the Denisova sequence is unknown, and areas of low sequence coverage may result in a higher SNP error rate.
A suite of demographic histories was considered to analyze the intraallelic variation in the deep lineage (supplementary material, Supplementary Material online). The distribution of time to the most recent common ancestor (TMRCA) values for perfectly matching frequency spectra was used to estimate median values and confidence intervals. The estimate including all considered demographic models is reported, but the results are not particularly sensitive to the model used (supplementary material, Supplementary Material online).
Results
Five amplicons sequenced in 88 individuals (supplementary table S3, Supplementary Material online) were grouped in two amplicon sets (1 and 2) as described above. In the following sections we analyze sequence variability in the 5′ region of OAS1, which exhibits unusual patterns of diversity. For a description of variation in the 3′ region, consult the supplementary material (Supplementary Material online).
Sequence Diversity
Levels of nucleotide diversity are unusually high for Papuans in amplicon set 1 (i.e., exons 1–3) (0.17% per base) (table 1), despite the fact that sequence divergence with chimpanzee in amplicon set 1 (1%) is below the genome average (1.3%). Sequence diversity in Papuans is higher within this segment of the OAS1 gene than at 61 intergenic autosomal loci when estimated using the following three measures: 1) nucleotide diversity per base in Papuans (P = 0.006), 2) nucleotide diversity corrected by sequence divergence with chimpanzee in Papuans (P = 0.0002, assuming a normal distribution, supplementary fig. S1, Supplementary Material online), and 3) the ratio of nucleotide diversity in Papuans to that in each of the other populations (P varies from 0.014 to 0.001, assuming a log-normal distribution). Although ancestral alleles are rarely private to Papuans, this region has five SNPs with the ancestral allele observed only in Papuans. In addition, another seven SNPs that are private to Papuans are observed more than once (supplementary table S3, Supplementary Material online).
Summary Statistics for Amplicon Sets 1 and 2 of OAS1.
| Amplicon Set 1(3,733 bp) | Amplicon Set 2(3,315 bp) | ||||||||
| Population | na | S | θW (%)b | π (%)b | D | S | θW (%)b | π (%)b | D |
| Biaka | 30 | 10 | 0.068 | 0.083 | 0.69 | 6 | 0.046 | 0.027 | −1.18 |
| Mandenka | 32 | 13 | 0.087 | 0.089 | 0.07 | 18 | 0.136 | 0.046 | −2.26 |
| San | 20 | 8 | 0.061 | 0.057 | −0.26 | 22 | 0.187 | 0.149 | −0.84 |
| Papuans | 30 | 18 | 0.123 | 0.173 | 1.41 | 12 | 0.092 | 0.137 | 1.61 |
| Han | 32 | 6 | 0.040 | 0.033 | −0.49 | 7 | 0.053 | 0.056 | 0.16 |
| Basque | 32 | 6 | 0.040 | 0.035 | −0.38 | 5 | 0.038 | 0.040 | 0.15 |
| Amplicon Set 1(3,733 bp) | Amplicon Set 2(3,315 bp) | ||||||||
| Population | na | S | θW (%)b | π (%)b | D | S | θW (%)b | π (%)b | D |
| Biaka | 30 | 10 | 0.068 | 0.083 | 0.69 | 6 | 0.046 | 0.027 | −1.18 |
| Mandenka | 32 | 13 | 0.087 | 0.089 | 0.07 | 18 | 0.136 | 0.046 | −2.26 |
| San | 20 | 8 | 0.061 | 0.057 | −0.26 | 22 | 0.187 | 0.149 | −0.84 |
| Papuans | 30 | 18 | 0.123 | 0.173 | 1.41 | 12 | 0.092 | 0.137 | 1.61 |
| Han | 32 | 6 | 0.040 | 0.033 | −0.49 | 7 | 0.053 | 0.056 | 0.16 |
| Basque | 32 | 6 | 0.040 | 0.035 | −0.38 | 5 | 0.038 | 0.040 | 0.15 |
Number of chromosomes in the sample.
Calculated per base.
Summary Statistics for Amplicon Sets 1 and 2 of OAS1.
| Amplicon Set 1(3,733 bp) | Amplicon Set 2(3,315 bp) | ||||||||
| Population | na | S | θW (%)b | π (%)b | D | S | θW (%)b | π (%)b | D |
| Biaka | 30 | 10 | 0.068 | 0.083 | 0.69 | 6 | 0.046 | 0.027 | −1.18 |
| Mandenka | 32 | 13 | 0.087 | 0.089 | 0.07 | 18 | 0.136 | 0.046 | −2.26 |
| San | 20 | 8 | 0.061 | 0.057 | −0.26 | 22 | 0.187 | 0.149 | −0.84 |
| Papuans | 30 | 18 | 0.123 | 0.173 | 1.41 | 12 | 0.092 | 0.137 | 1.61 |
| Han | 32 | 6 | 0.040 | 0.033 | −0.49 | 7 | 0.053 | 0.056 | 0.16 |
| Basque | 32 | 6 | 0.040 | 0.035 | −0.38 | 5 | 0.038 | 0.040 | 0.15 |
| Amplicon Set 1(3,733 bp) | Amplicon Set 2(3,315 bp) | ||||||||
| Population | na | S | θW (%)b | π (%)b | D | S | θW (%)b | π (%)b | D |
| Biaka | 30 | 10 | 0.068 | 0.083 | 0.69 | 6 | 0.046 | 0.027 | −1.18 |
| Mandenka | 32 | 13 | 0.087 | 0.089 | 0.07 | 18 | 0.136 | 0.046 | −2.26 |
| San | 20 | 8 | 0.061 | 0.057 | −0.26 | 22 | 0.187 | 0.149 | −0.84 |
| Papuans | 30 | 18 | 0.123 | 0.173 | 1.41 | 12 | 0.092 | 0.137 | 1.61 |
| Han | 32 | 6 | 0.040 | 0.033 | −0.49 | 7 | 0.053 | 0.056 | 0.16 |
| Basque | 32 | 6 | 0.040 | 0.035 | −0.38 | 5 | 0.038 | 0.040 | 0.15 |
Number of chromosomes in the sample.
Calculated per base.
Network
Computationally phased sequences were used to generate a median-joining network of haplotypes. The network shows a long branch separating a fraction of Papuan haplotypes from a cluster with all remaining haplotypes (fig. 2). When the network is rooted through comparison with great apes, Papuan lineages fall on either side of the root. We refer to the basal branch containing only Papuans as the “deep lineage.”

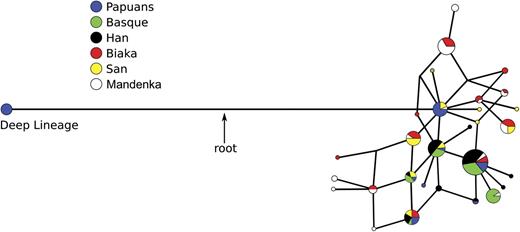

Median-joining network of phased haplotypes for the first three amplicons. Branch lengths are proportional to the number of mutations along each branch, and the area of the circle is proportional to haplotype frequency.
Median-joining network of phased haplotypes for the first three amplicons. Branch lengths are proportional to the number of mutations along each branch, and the area of the circle is proportional to haplotype frequency.
Divergence Time
To estimate the time of the deepest branching point, we aligned the reference sequences of the human, chimpanzee, and gorilla, with the sequence from an individual carrying two copies of the deep lineage, and compared the number of mutations segregating between the two humans with the number of mutations shared by the human sequences since the most recent common ancestor with chimpanzee. Assuming that the human and chimpanzee sequences diverged 6 Ma, the estimated time of the branching event is 3.7 Ma (2–5.2 Ma, 95% confidence interval [CI]) (table 2).
Divergence Time Estimates (Ma).
| Time/(95% CI) | |||||
| Lineages Compared | Amplicon Set 1a | First Section | Second Section | Third Section | Second and Third sections |
| Deep–Reference | 3.7 (2.0–5.2) | 0.6 (0.2–1.2) | 3.3 (2.0–4.5) | 1.1 (0.4–2.2) | |
| Deep–Denisova | 0.6 (0.015–2.7) | 0.7 (0.15–1.8) | |||
| Time/(95% CI) | |||||
| Lineages Compared | Amplicon Set 1a | First Section | Second Section | Third Section | Second and Third sections |
| Deep–Reference | 3.7 (2.0–5.2) | 0.6 (0.2–1.2) | 3.3 (2.0–4.5) | 1.1 (0.4–2.2) | |
| Deep–Denisova | 0.6 (0.015–2.7) | 0.7 (0.15–1.8) | |||
Amplicon set 1 is a subset of the second section (see text).
Divergence Time Estimates (Ma).
| Time/(95% CI) | |||||
| Lineages Compared | Amplicon Set 1a | First Section | Second Section | Third Section | Second and Third sections |
| Deep–Reference | 3.7 (2.0–5.2) | 0.6 (0.2–1.2) | 3.3 (2.0–4.5) | 1.1 (0.4–2.2) | |
| Deep–Denisova | 0.6 (0.015–2.7) | 0.7 (0.15–1.8) | |||
| Time/(95% CI) | |||||
| Lineages Compared | Amplicon Set 1a | First Section | Second Section | Third Section | Second and Third sections |
| Deep–Reference | 3.7 (2.0–5.2) | 0.6 (0.2–1.2) | 3.3 (2.0–4.5) | 1.1 (0.4–2.2) | |
| Deep–Denisova | 0.6 (0.015–2.7) | 0.7 (0.15–1.8) | |||
Amplicon set 1 is a subset of the second section (see text).
Comparisons with the Denisova Sequence
We then compared the deep lineage sequence with that of the recently reported sequence of the hominin from Denisova in the sequence matching amplicon set 1. The two sequences are identical at nearly all the sites at which the Denisova sequence has 2× or higher coverage, with the exception of one site (position 30504), at which the extant human carries the derived C and the Denisova specimen carries the ancestral T (supplementary material, Supplementary Material online). The estimated divergence time between the two sequences is 0.6 Ma (0.015–2.7 Ma, 95% CI) (table 2).
Extended Resequencing within and 5′ of OAS1
We performed extended resequencing on a >18-kb region that begins ∼9.1 kb upstream of OAS1 and encompasses the entire gene in the Melanesian panel (supplementary table S4, Supplementary Material online) to 1) estimate the length of the unusal haplotype characterizing the deep lineage; 2) infer branching times of the deep lineage, the human reference, and the Denisova sequence; and 3) analyze intraallelic variation in the deep lineage. The deep lineage and Denisova sequence share SNPs over a >12-kb segment. For example, the deep lineage and Denisova share the ancestral T and C at positions 29013 and 41363, respectively, whereas Eurasians and Africans share the derived C and T at these positions (supplementary table S3, Supplementary Material online). Haplotype homozygosity in the deep lineage was explored 5′ from the gene, extending up to position 20638 (supplementary table S4, Supplementary Material online).
Three contiguous sections of ∼6 kb (22001–28000, 28001–34000, and 34001–40000) were analyzed separately and in various combinations (fig. 1). Analysis of the second of these three sections (i.e., 28001–34000) yields an estimated time for the branching between the deep lineage and the human reference sequence of 3.3 Ma (2.0–4.5 Ma, 95% CI) (table 2). This compares with the corresponding divergence time estimates of 0.6 Ma (0.2–1.2 Ma, 95% CI) and 1.1 Ma (0.4–2.2 Ma, 95% CI) for the first (22001–28000) and third (34001–40000) sections, respectively. Fisher's exact test shows that the divergence time of the second section is significantly greater than those of the first section (P < 10−4) and of the third section (P < 0.01).
Extent of LD Associated with Deep Lineage
To characterize the extent of LD associated with the deep lineage, we examined publicly available Illumina 650 array data and identified a distinctive ∼90 kb haplotype in an HGDP (Human Genome Diversity Project) individual who is known to be homozygous for the deep lineage (supplementary material, Supplementary Material online). Notably, for regions throughout this 90-kb block that have good sequence coverage in Denisova, there is complete agreement between deep lineage and Denisova SNP calls. To estimate the time that this extent of haplotype agreement between the Denisova sequence and the deep lineage is expected to persist in a single population, we performed the following analysis. We used PHASE v2.1 on HapMap phase II Yoruban data, assuming an effective population size of 10,000, and the method described in supplementary material (Supplementary Material online), to estimate the genetic map length for this block and obtained a value of 0.22 cM. If we assume that all recombination events are detectable and that there are 25 years per generation, the time of persistence of a block of this genetic length is exponentially distributed with parameter 0.0022 per generation. Thus, a block of 0.22 cM would have a 50%, 95%, and 99% probability of decaying in 8, 34, and 52 ky, respectively. Given the markers and their allelic frequency, not all recombination events are detectable. For example, if only half of the recombination events were detectable, these times would be doubled.
Geographic Distribution of the Deep Lineage
Diagnostic polymorphisms for the deep lineage were used to assess its geographic distribution (fig. 3; supplementary table S5a, Supplementary Material online). This lineage is mostly restricted to and widely distributed within Melanesia. Exceptions include the finding of the diagnostic deep lineage SNPs in two Pakistanis and a single Sri Lankan (supplementary material, Supplementary Material online) in our sample of 323 South Asians.
Geographic distribution of the deep lineage in (A) Old World populations and (B) South East Asians and Oceanians.
Geographic distribution of the deep lineage in (A) Old World populations and (B) South East Asians and Oceanians.
Functional Variation
We identified 12 nonsynonymous, one frameshift, and one splice site polymorphisms in our data set (supplementary table S3, Supplementary Material online). Five of these nonsynonymous SNPs are in exonic regions that are spliced out of some versions of the gene product. By analyzing the protein sequences (supplementary material, Supplementary Material online), we identified four amino acid replacements with a likely functional effect, and three of them (R104G, P129R, and E183D) are found only in the deep lineage and Denisova sequence. The remaining replacement change (T69N) was observed on a single Papuan chromosome.
Discussion
Analyses of the recently published Neandertal and Denisova sequences from Eurasia suggest that archaic introgression may have played an important role in shaping genetic variation in non-Africans (Green et al. 2010; Reich et al. 2010). Although genome-wide comparisons detect more sequence agreement between non-African and Neandertal genomes and between Melanesian and Denisova genomes, the specific loci exhibiting these signals have not yet been identified. Furthermore, current analyses do not elucidate the relative roles of recent introgression versus long-term population structure in Africa in explaining these patterns. Another unanswered question concerns how gene flow occurred given the large geographic distance between the Denisova archeological site in the Altai Mountains and the likely route of migration of Melanesian ancestors. It is unclear whether individuals carrying Denisova-like sequences in the Altai region contributed directly or shared some genetic variation with the population that contributed to the ancestry of Melanesians. We address these issues in our study of a region encompassing the OAS1 gene, a locus with a divergent Melanesian haplotype that is very similar to the Denisova sequence. Importantly, none of the three individuals (1 Sri Lankan and 2 Pakistanis) found to carry this haplotype in our survey of 1,212 non-Melanesians was an African (n = 653).
Evidence for Archaic Introgression at OAS1
Three unusual features of genetic diversity characterize the 5′ region of OAS1 (fig. 1): 1) sequence variation in Papuans is higher than that of 61 intergenic control loci, despite the fact that sequence divergence with chimpanzee in this region is below the genome average; 2) polymorphic sites with the ancestral state are observed only in Papuans; and 3) one of the two basal branches on a median-joining network (the “deep” lineage) is found only in Papuans. These patterns contrast with those of the overwhelming majority of loci in the genome, which show higher African diversity and basal lineages that are exclusive to sub-Saharan African populations (Takahata et al. 2001; Excoffier 2002; Garrigan and Hammer 2006; Henn et al. 2011). Moreover, the sequence obtained for the deep OAS1 lineage is very similar to that of the hominin specimen from Denisova (fig. 1; supplementary table S6, Supplementary Material online).
The presence of a modern Melanesian haplotype that is similar to the Denisova sequence may be the result of ancestral shared polymorphism that persisted in the ancestors of Denisova and AMH and that was subsequently lost in all non-Melanesian AMH populations (fig. 4A). Alternatively, the similarity between the deep lineage and the Denisova sequence may be a consequence of recent admixture between a Denisova-like population and the ancestors of extant Melanesians (fig. 4B). We may be able to distinguish these alternatives because variants that recently introgressed are expected to be associated with longer blocks of LD (Wall 2000; Nordborg 2001; Garrigan et al. 2005). We found a block of ∼90 kb in which there is complete agreement between deep lineage and Denisova SNP calls and then evaluated whether the observed extent of LD associated with the deep lineage was likely under a model of ancestral polymorphism. In other words, we considered the probability that a block with the observed genetic length persisted in a single population since the estimated Denisova-AMH split time of 300 kya (Reich et al. 2010). We found that a block of length 0.22 cM would have a 99% probability of decaying in 52 ky, or more conservatively, within ∼100 ky (see Results). This suggests that the deep lineage was isolated from most of the other OAS1 lineages (e.g., those characterized by different Illumina SNP–based haplotypes, which are extremely abundant in Africa) as expected under a model of isolation and admixture (Nordborg 2001) (fig. 4B). A genome-wide comparison shows a greater average similarity between the sequences of Neandertal and Denisova than with those of modern humans (Reich et al. 2010). We made a preliminary comparison between the Neandertal sequence, the deep lineage, and extant human sequences and found that the former is very similar to the human reference sequence (data not shown). An in-depth analysis of the sequence of the OAS1 region in Neandertal will be presented elsewhere. To ensure that our conclusions were not biased by comparisons with the reference sequence, we repeated our analysis replacing the reference sequence with other non-Melanesian sequences and obtained very similar results (data not shown).
Demographic models to explain nucleotide polymorphism observed at OAS1. (A) The deep lineage and the Denisova sequence are similar due to ancestral polymorphism maintained in Denisova and modern humans but subsequently lost in all non-Melanesians. (B) The deep lineage is observed in Melanesians due to admixture with Denisova-like humans.
Demographic models to explain nucleotide polymorphism observed at OAS1. (A) The deep lineage and the Denisova sequence are similar due to ancestral polymorphism maintained in Denisova and modern humans but subsequently lost in all non-Melanesians. (B) The deep lineage is observed in Melanesians due to admixture with Denisova-like humans.
On the Possible Source(s) of Introgression
The sequence of the deep lineage has several properties that fit expectations of a haplotype that has introgressed from a distinct population that was isolated in Asia, including its differentiation from other haplotypes, extent of linkage disequilibrium, and close relationship with an archaic Asian sequence. Broadly distributed throughout Melanesia, the deep lineage exhibits very low intraallelic diversity (supplementary table S4, Supplementary Material online), with an estimated TMRCA of ∼25 kya (supplementary material and Supplementary Data and Supplementary Data, Supplementary Material online), suggesting that it may have diversified and spread with the expansion of modern humans in the region. To further test for the presence of the deep lineage outside of Melanesia, we used the 90-kb haplotype described above as a query in a database search, we identified five similar haplotypes from Oceania and two from Pakistan (supplementary material, Supplementary Material online) and confirmed that these individuals also carry the deep lineage. These two Pakistani individuals (not genotyped in our survey) share a ∼170 kb block with a Melanesian individual. The presence of this single long haplotype, which is otherwise restricted to Melanesia, in combination with the absence of non-deep lineages that are common in Pakistan and higher deep lineage diversity in Melanesia, suggests that the deep lineage migrated to South Asia from Melanesia. Our deep lineage results are consistent with those of a recent study of the distribution of SNPs inferred to be shared with the Denisova genome, which showed that the admixture signal is nearly limited to aboriginal groups in eastern Indonesia and Oceania (Reich et al. 2011). In sum, these patterns are unexpected for sequences that evolved in AMH in Africa and support the hypothesis that the deep lineage introgressed into the ancestors of Melanesians from an archaic human population outside of Africa.
Considering the large geographic distance between the Altai mountains and the likely southern out-of-Africa migration route of the ancestors of Melanesians, which is not thought to have occurred earlier than ∼70 kya (Macaulay et al. 2005), and the much older divergence time of the human deep lineage and the Denisova sequence (∼700 kya, table 2), we suggest that the archaic ancestor contributing the deep lineage to Melanesians and the specimen from Denisova were members of genetically differentiated populations. Interestingly, the coalescent time of the human reference and deep lineage of 3.3 Ma is much older than the population divergence time of ∼0.3 Ma for humans and Denisova suggested by Reich et al. (2010). Although TMRCAs are expected to predate population divergence events, the discrepancy observed here is substantial. Preliminary analysis that suggests simple models that invoke balancing selection do not sufficiently explain the pattern of such a deep TMRCA combined with the concurrent maintenance of LD extending ≥6 kb (supplementary material, Supplementary Material online), although balancing selection and local adaptation may have influenced the current distribution of the deep lineage. Furthermore, an exclusively selectionist explanation for the observed variation at this locus would require that after evolving and being maintained by selection for ∼3 myr in Africa, the deep lineage is completely lost in Africans and Neandertals in <300 ky. These observations present the intriguing possibility that this deeply diverged region of OAS1 may have introgressed into the common ancestor of Denisova and Melanesians via admixture with an unsampled hominin group, such as Homo erectus. In fact, the introgression of a more archaic form into the ancestors of Denisova was also considered by Reich et al. (2010) to explain some archaic morphological features of the Denisova molar. However, without DNA from this “ghost” population or evidence from other loci showing a similar pattern of extreme haplotype differentiation, such a scenario is speculative. Fortunately, complete genomes from several Melanesian and other populations will soon be available, which will provide an opportunity to identify additional introgressed haplotypes, if they indeed exist. Detailed analysis of such candidate loci holds the key to untangling the complex relationships between modern and archaic hominins suggested by this study of OAS1.
We thank Jennifer Reid for technical assistance, Tatiana Karafet and August Woerner for helpful discussions, Latifa Jackson for support, and Krishna Veeramah for comments on the manuscript. This research was funded by a National Science Foundation HOMINID grant (BCS-0423670) to M.F.H.
